XAT 2JZ Pulleys JZ Billet Aluminum Pulley Kit Set

SKU: JZ-pulleys

NOW IN STOCK, READY TO SHIP!

The initial test batch has been finalized, mounted, and confirmed for fitment! Options include anodized black or anodized clear (silver).  Fits 1JZ, 2JZGE 2JZGTE VVTi and non!

Assorted JZ engines use different pulleys depending on generation and chassis. This kit is meant for all JZ engines, with the water pump pulley being the only one not fitting on 98+ GS300, Aristo, Crown, IS300, etc. The water pump pulley is for non-hydrofan cars only. If you intend on removing the hydrofan setup and going with e-fans, this will be your solution!

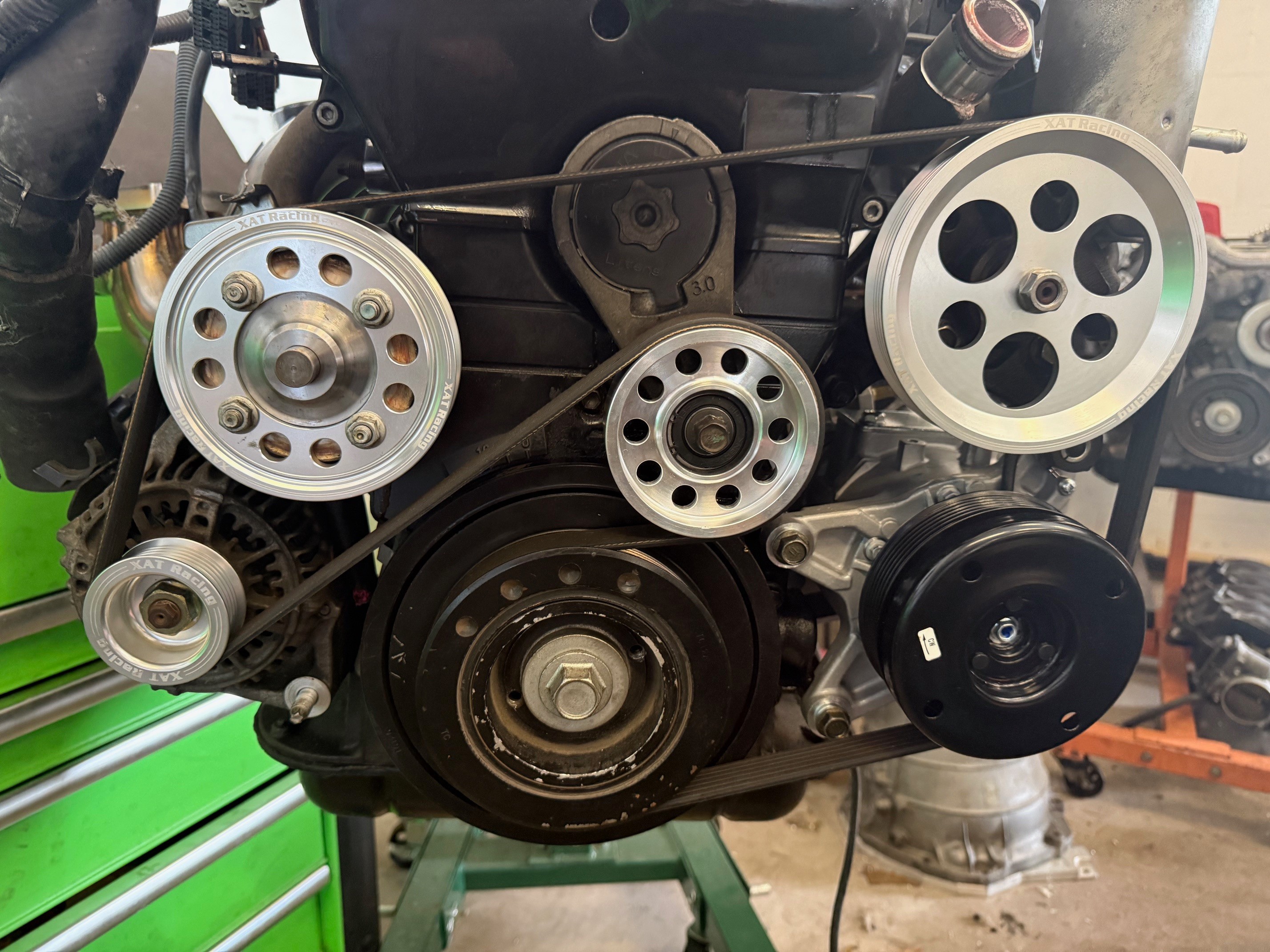

Included pulleys, one of each:

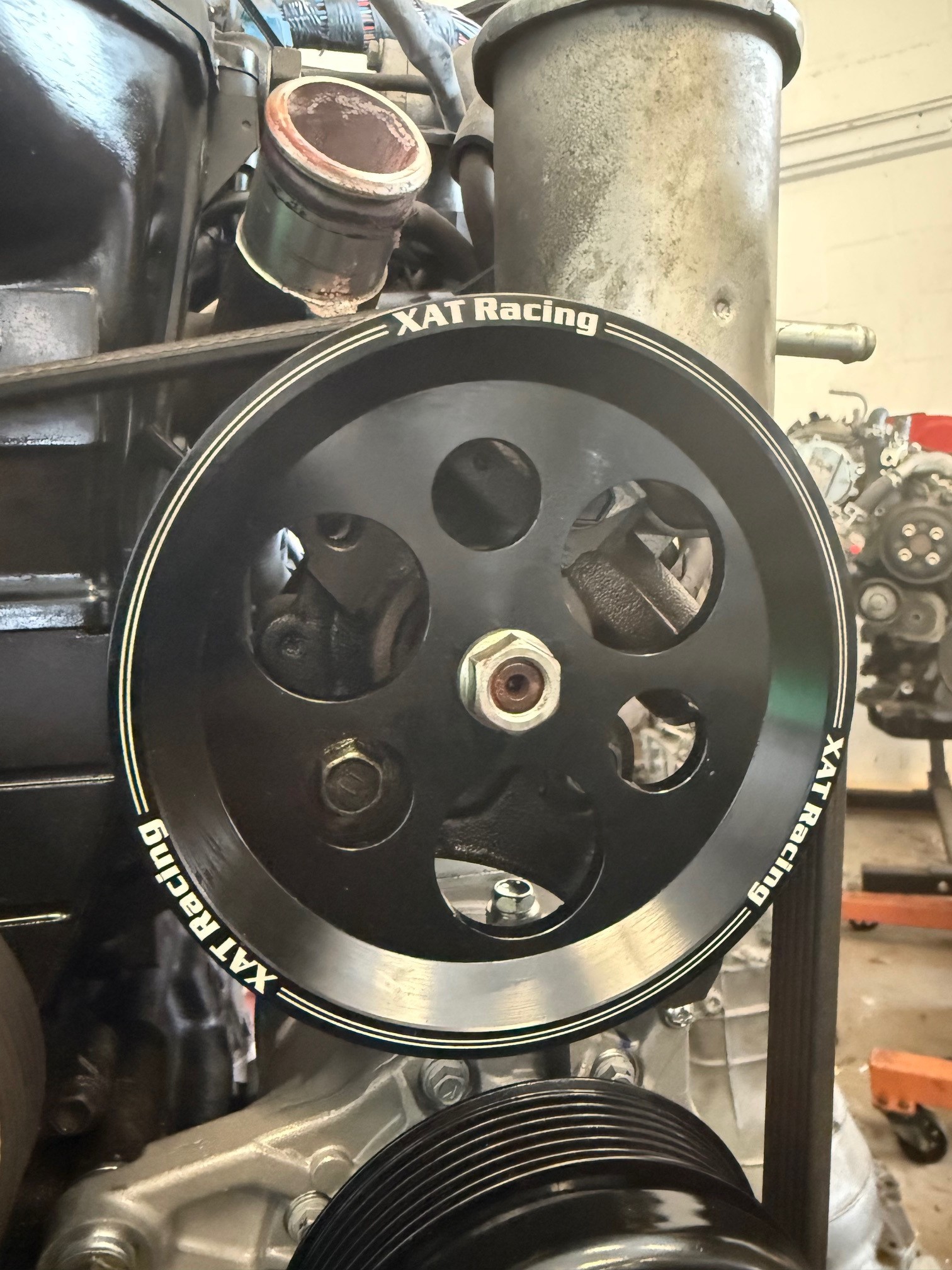

  • Power steering:

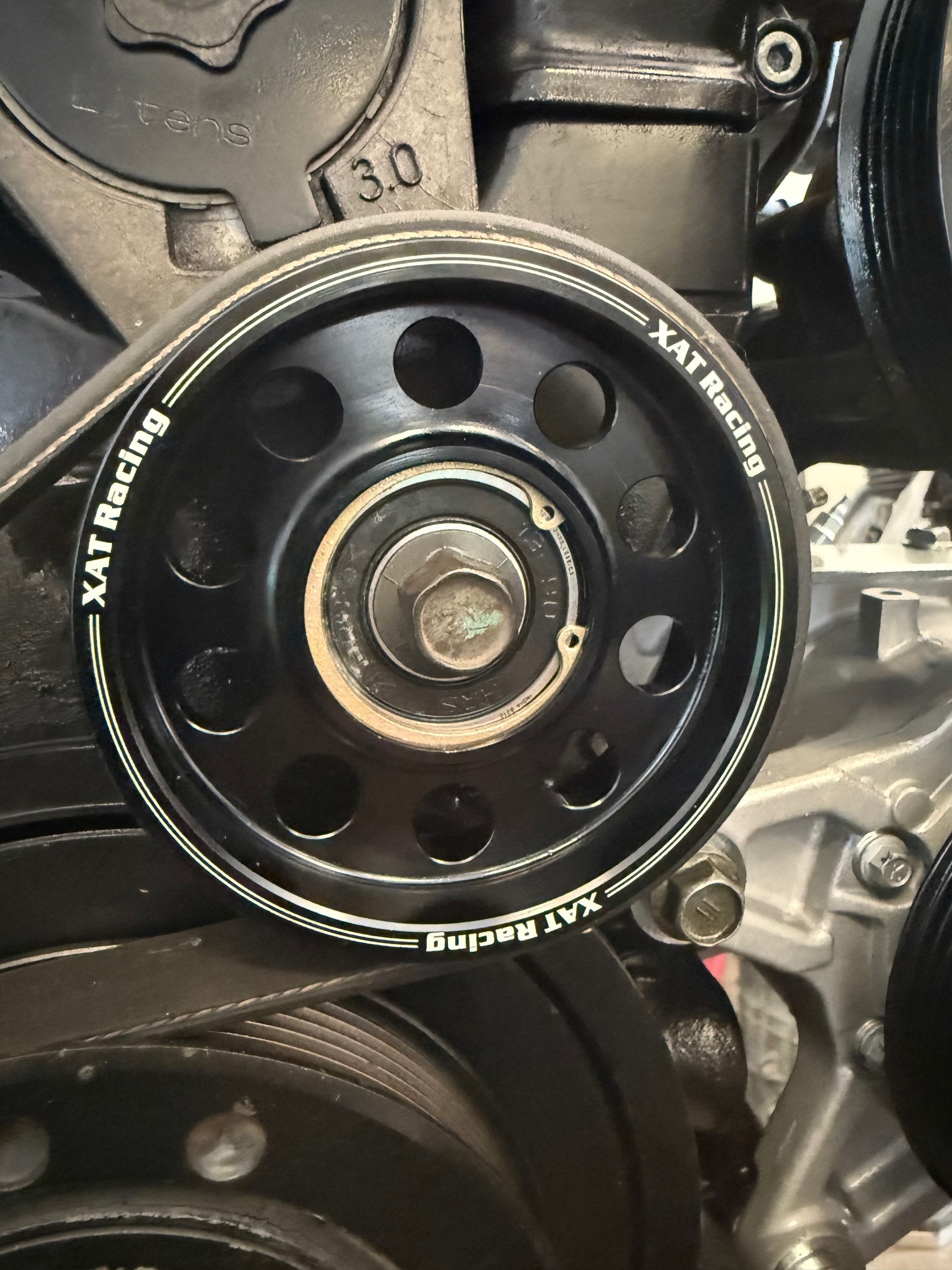

  • Tensioner idler
  • Water pump
  • Alternator:

All pulleys are stock size/diameter. This should not change which sized belt you will need. Whichever belt size you're currently using will be retained

Not rated yet
0
XAT Racing
Vehicle Specific
Check if this part fits your vehicle.
  • $336.25

In stock(25 items available)
OR

 |

    • SKU
      JZ-pulleys
    • Weight
      3 lbs
    • Dimensions (L x W x H)
      13 x 11 x 3 in
  • Manufacturer
    XAT Racing
  • Finish
    Anodized black, Silver (clear anodized)
  • Safety & Compliance
    • Prop 65 Yes/No
      Yes
  • Fitment
    • Fitment Type
      Vehicle Specific
MakeModelYearSubmodelNotes
Toyota/LexusLexus LS/Celsior1989-1994 UCF10/11 LS400/Celsior1UZ-FE 4.0 V8 non-VVTi
Toyota/LexusLexus LS/Celsior1995-1997 UCF20/21 LS400/Celsior1UZ-FE 4.0 V8 non-VVTi
Toyota/LexusLexus LS/Celsior1998-2000 UCF20/21 LS400/Celsior1UZ-FE VVTi 4.0 V8
Toyota/LexusLexus LS/Celsior2001-2005 UCF30 LS430/Celsior3UZ-FE 4.3 V8
Toyota/LexusLexus GS/Aristo1998-2005 S1601UZ VVTi 4.0 V8 (1998-2000) UZS160
Toyota/LexusLexus GS/Aristo1998-2005 S1603UZ 4.3 V8 (2001-2005) UZS161
Toyota/LexusCrown Majesta1995-1999 S1501UZ-FE 4.0 V8 (UZS151, UZS155, UZS157)
Toyota/LexusCrown Majesta1999-2004 S1701UZ VVTi 4.0 V8 (UZS173, UZS175)
Toyota/LexusLexus SC/Soarer1991-2000 Z301UZ-FE non-VVTi 4.0 V8 (92-97) UZZ30/31/32
Toyota/LexusLexus SC/Soarer1991-2000 Z301UZ-FE VVTi 4.0 V8 UZZ30 (1998-2000)
Toyota/LexusLexus SC/Soarer2001-2010 Z403UZ-FE 4.3 V8
Toyota/LexusTundra2007-2021 2nd Gen2UZ-FE 4.7 V8
Toyota/LexusTundra2000-2006 1st Gen2UZ-FE 4.7 V8
Toyota/LexusSequoia2001-2007 1st gen2UZ-FE 4.7 V8
Toyota/LexusSequoia2008-2022 2nd gen2008-2009 2UZ-FE 4.7 V8
Toyota/Lexus4Runner2003-20092UZ-FE 4.7 V8 UZN210/UZN215
Toyota/LexusLand Cruiser/Lexus LX100 series / Lexus LX470 (1998-2007)2UZ-FE 4.7 V8
Toyota/LexusLexus GX4702003-2009 UZJ1202UZ-FE 4.7 V8
