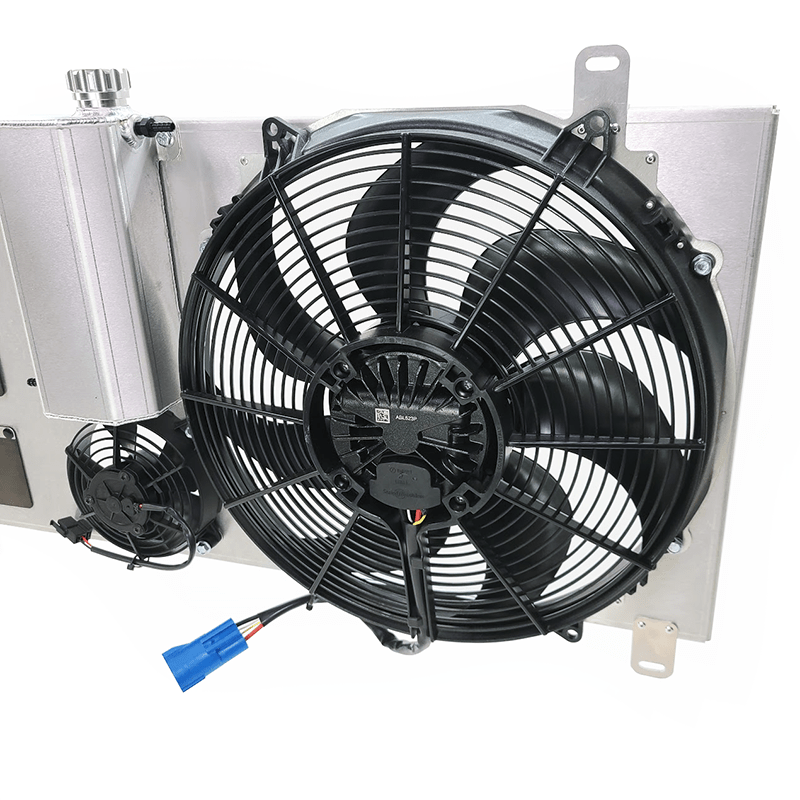

PHR 15.2" Single Brushless Fan Kit MkIV Supra SC300 SC400 Soarer
SKU: 15.2KIT.R.0.0.R.0
Perfect for turbo builds, the PHR SPAL 15.2" Single Brushless Fan Kit is the ideal cooling upgrade for the MKIV Toyota Supra. Designed to provide high-output electric cooling while maintaining critical space for intercooler piping, this kit is built for modern performance setups.
- SPAL 15.2" Brushless Main Fan
Pushes 4200 m³/h (2478 CFM) of airflow with variable-speed PWM control. Whisper-quiet and highly efficient under all conditions. - Optional 5" Auxiliary SPAL Fan
Adds 490 m³/h (289 CFM) of supplemental cooling—bringing total system flow to 4690 m³/h (2767 CFM) when combined with the main fan. The auxiliary fan is a brushed fan and controlled with simple on/off relay control. - Intercooler-Friendly Layout
The single main fan layout provides clearance for front-mounted intercooler piping, solving common fitment issues in turbocharged applications. - Integrated Overflow Tank (Optional)
Tucked cleanly into the shroud, available in raw aluminum or powder-coated or polished finishes (gloss black, matte black, wrinkle black, or polished). - High-Speed Bypass Flaps
Allow passive airflow through the radiator at cruising speeds, improving efficiency and reducing fan workload. - Smart Auxiliary Fan Options
Add the 5" auxiliary fan and chose your control strategy! Factory Plug-In A/C Control
Reuse the OEM auxiliary fan wiring from twin turbo Supras. The auxiliary fan will activate automatically with your A/C system—no wiring mods needed. Just swap connectors. This was not an option on non-turbo vehicles. - Standalone ECU Control
Add the optional wiring harness to control the fan from your aftermarket ECU, allowing on-demand cooling support based on temp, load, or A/C signal.
Vehicle Specific
Check if this part fits your vehicle.
- Shipping info
We deliver worldwide
- Payment methods
- FinishRaw dog, Gloss black powdercoat, Matte black powdercoat, Polished
- 5" Brushed Auxilary FanYes! Include the small fan, Just the 15.2" main fan please
- Attached Overflow ReservoirNone, I will use my setup, Attached overflow tank, raw finish, Attached overflow tank, gloss black, Attached overflow tank, matte black, Attached overflow tank, polished
- Wiring Harness for 15.2" FanYes, main and auxiliary fans, Yes, main fan only, None
- Fitment
- Fitment TypeVehicle Specific
| Make | Model | Year | Submodel | Notes |
|---|---|---|---|---|
| Toyota/Lexus | Lexus SC/Soarer | 1991-2000 Z30 | 2JZ-GE 3.0 I6 JZZ31 | |
| Toyota/Lexus | Lexus SC/Soarer | 1991-2000 Z30 | 1UZ-FE VVTi 4.0 V8 UZZ30 (1998-2000) | |
| Toyota/Lexus | Lexus SC/Soarer | 1991-2000 Z30 | 1UZ-FE non-VVTi 4.0 V8 (92-97) UZZ30/31/32 | |
| Toyota/Lexus | Lexus SC/Soarer | 1991-2000 Z30 | 1JZ-GTE 2.5 I6 turbo JZZ30 | |
| Toyota/Lexus | Supra | 1993-2002 A80 | 2JZ-GTE/2JZ-GE 3.0 I6 JZA80 |
