Xcessive 98-05 GS300 Clutch Pedal Kit JZS160 LHD 2GS
  • Xcessive 98-05 GS300 Clutch Pedal Kit JZS160 LHD 2GS
  • Xcessive 98-05 GS300 Clutch Pedal Kit JZS160 LHD 2GS

Xcessive 98-05 GS300 Clutch Pedal Kit JZS160 LHD 2GS

SKU: T-S160-CPM

If you're doing a manual transmission swap on your JZS160 chassis, you're going to need one of these. It's the only readily available clutch pedal that's even close to a bolt in for the JZS160 chassis.

The GS300 never came with a clutch pedal, so there's no provisions for fitment already built into the car. You will need to drill 3 holes in the firewall and relocate some wiring under the dash for the pedal to mount up and fit.

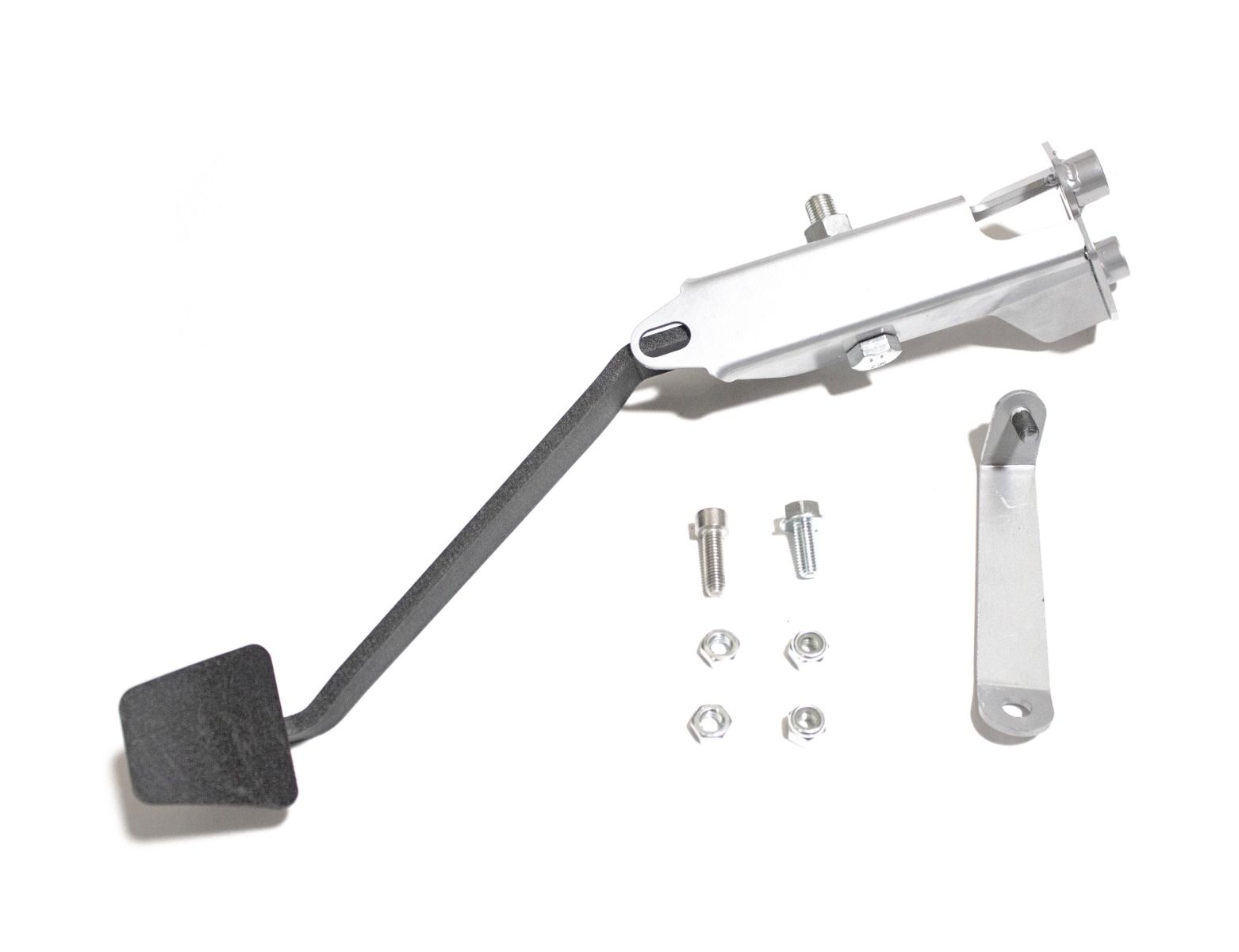

The main bracket is formed 1/8" steel and the hanging pedal arm is 1/4" steel on a 12mm pivot. We've also provided all the bolting hardware for the clutch mount and the master cylinder hook ups. The base kit does NOT include the clutch master cylinder. Please note our manual transmission conversions require a 3/4" master cylinder. The optional master cylinder for this kit is a 5/8"

Please note this pedal is made for LHD USDM cars.

Not rated yet
0
Vehicle Specific
Check if this part fits your vehicle.
  • $225

OR

|

    • SKU
      T-S160-CPM
    • Weight
      3 lbs
    • Dimensions (L x W x H)
      18 x 12 x 12 in
  • Include Master Cylinder?
    No, just pedal assembly, Pedal and 5/8" master cylinder
  • Safety & Compliance
    • Prop 65 Yes/No
      Yes
  • Fitment
    • Fitment Type
      Vehicle Specific
MakeModelYearSubmodelNotes
Toyota/LexusLexus SC/Soarer1991-2000 Z301UZ-FE non-VVTi 4.0 V8 (92-97) UZZ30/31/32
Toyota/LexusLexus SC/Soarer1991-2000 Z301UZ-FE VVTi 4.0 V8 UZZ30 (1998-2000)
Toyota/LexusLexus SC/Soarer1991-2000 Z302JZ-GE 3.0 I6 JZZ31
