Radium Fuel Pump Hanger Chaser Mark II Cresta X90 X100 JZX90 JZX100
SKU: 20-0940
The Radium Engineering Fuel Pump Hanger is a drop-in aftermarket fuel pump solution for supplying the fuel required to maximize power gains. Fits JZX90 and JZX100 Chaser, Mark II, and Cresta
Features
-Drop-In Installation
-Dual Pump Capable with Popular Pumps
-Brushless Fuel Pump Compatibility
-High Current Electrical Hardware
-Anodized Aluminum Construction
-Gasoline, Methanol, and Ethanol Compliant
-Fuel Resistant Tubing and Wiring
-Stainless Steel Hardware
Multiple adapter fittings are provided for connecting back to the OEM fuel lines. If a second pump is installed, an SAE quick connector is provided that snaps into the underside of the fuel hat simplifying installation. For later model vehicles that use the inverted flare feed line, a replacement PTFE feed hose is provided, as shown in pictures.

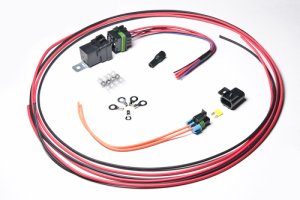

The custom designed stainless electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Electrical hardware is included for the fuel pump(s). Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE. Relay kits, such as 17-0031, are recommended to drive these new internal fuel pump(s).
Vehicle Specific
Check if this part fits your vehicle.
- Shipping info
We deliver worldwide
- Payment methods
In-tank fuel pump hanger for the Toyota JZX chassis vehicles. Replaces the factory fuel pump assembly. Can be used with one or two aftermarket fuel pumps. Components included for hook-up to OEM fuel lines. Also compatible with aftermarket fuel lines. Fuel pumps are not included.
- ManufacturerRadium Engineering
- Add Fuel PumpYes, Walbro Hellcat F90000285, Yes, Walbro Hellcat x2 F90000285, Yes, Walbro E85 400 lph F90000267, Yes, Walbro E85 400 lph x2 F90000267, Yes, AEM E85 340 lph 50-1200, Yes, AEM E85 340 lph x2 50-1200, No
- Radium Fuel Pump Relay KitYes, for one pump 17-0031, Yes, for two pumps 17-0031, No
- Safety & Compliance
- CARB acknowledgment requiredNo
- Prop 65 Yes/NoYes
- CARB approvedYes
- Fitment
- Fitment TypeVehicle Specific
| Make | Model | Year | Submodel | Notes |
|---|---|---|---|---|
| Toyota/Lexus | Chaser, Mark II, Cresta | 1996-2000 X100 | 1JZ-GE VVTi 2.5 I6 Tourer S, Avante/Grande | |
| Toyota/Lexus | Chaser, Mark II, Cresta | 1996-2000 X100 | 1JZ-GTE VVTi 2.5 I6 turbo Tourer V | |
| Toyota/Lexus | Chaser, Mark II, Cresta | 1992-1996 X90 | 1JZ-GTE Tourer V |
